A panoramic dental X-ray, also called a panoramic radiograph or orthopantomogram, is a two-dimensional image that captures both jaws, all the teeth, the temporomandibular joints, the nasal area and the sinuses in a single rotating pass lasting roughly 10 to 20 seconds. It is the standard first look before wisdom tooth removal, implant placement and orthodontic planning, and for cysts, fractures and other jaw pathology. Doses are low: thermoluminescent dosimeter measurements in a phantom gave an effective dose of 17 microsieverts for a conventional panoramic unit and 23 microsieverts for a digital one, falling to 8 microsieverts at the lowest digital exposure settings (PubMed 18448296).
- 01One rotating pass of about 10 to 20 seconds records both jaws, all the teeth, the temporomandibular joints, the nasal region and the sinuses in a single image.
- 02Measured effective dose in a Rando phantom was 17 microsieverts for a conventional panoramic device and 23 microsieverts for a digital one, falling to 8 microsieverts at the lowest exposure settings (PubMed 18448296).
- 03The panoramic view is a survey image with limited fine detail, so small cavities and micro-cracks need intraoral bitewing or periapical films instead.
- 04Its commonest single indication is impacted teeth, particularly third molars, where root position drives the extraction plan.
- 05Preparation is limited to removing jewellery, glasses and metal objects; the patient bites a sterile guide and stays still while the arm rotates.
Introduction to Panoramic Dental X-Rays
Modern dentistry relies heavily on imaging to diagnose and treat oral health problems. Among these tools, the panoramic dental X-ray is widely used because it covers the whole mouth in one image.
Unlike traditional intraoral X-rays that focus on a few teeth at a time, a panoramic x-ray captures the entire mouth including the upper and lower jaws, teeth, temporomandibular joints (TMJ), nasal area, and sinuses in a single image.
What Is a Panoramic Dental X-Ray
A panoramic dental x-ray, also known as a panoramic radiograph or orthopantomogram (OPG), is a two-dimensional imaging technique that provides a broad view of the entire mouth in one shot.
This type of X-ray shows all teeth in both the upper and lower jaws, as well as their surrounding bones and supporting structures.
Because of its wide coverage, it's often used for:
- Detecting impacted teeth or wisdom teeth
- Identifying jawbone abnormalities or cysts
- Evaluating sinus problems
- Planning orthodontic or implant treatments
- Assessing trauma, infections, or fractures
The digital panoramic x-ray version uses electronic sensors instead of traditional film and displays the image immediately. Digital does not automatically mean a lower dose: in phantom measurements the effective dose was 17 microsieverts for a conventional panoramic unit and 23 microsieverts for a digital one, falling to 8 microsieverts when the lowest exposure settings were selected (PubMed 18448296).
How Panoramic X-Rays Work and Why They Are Needed

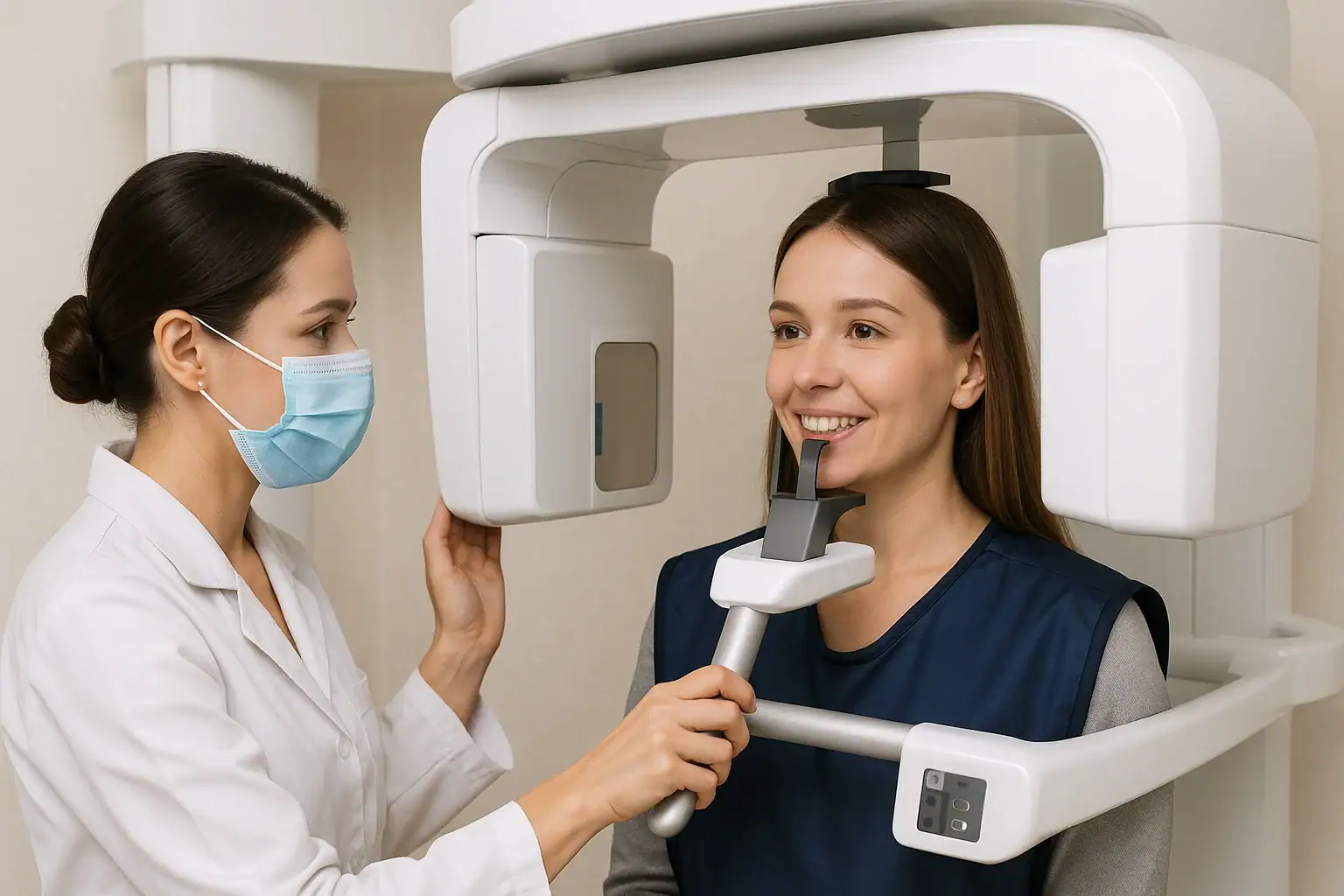

The panoramic x-ray machine consists of a rotating arm that moves around the patient's head. This arm houses both an X-ray source and a sensor (or film) on opposite sides.
When activated, the arm rotates in a semicircular motion, capturing multiple images that are digitally combined into a single panoramic view.
Step-by-step procedure
The examination follows the same four steps each time.
- Preparation: The patient is asked to remove jewelry, glasses, and metal objects that might interfere with the image.
- Positioning: The patient stands or sits in the X-ray unit, biting gently on a sterile plastic guide to keep the jaws steady.
- Exposure: The machine rotates around the head for about 10 to 20 seconds. During this time, the patient must stay completely still.
- Image generation: The digital panoramic x-ray system immediately processes and displays the image on the computer screen for the dentist's evaluation.
This method is non-invasive and needs no anesthesia.
Why Is a Panoramic X-Ray Needed
Dentists recommend a panoramic x-ray for several reasons, depending on each patient's condition.
Comprehensive Oral Assessment
The panoramic view provides a complete picture of both jaws, all teeth, and surrounding tissues. It helps dentists detect underlying problems not visible during a routine clinical exam.
Wisdom Teeth and Impacted Tooth Evaluation
It's one of the most common reasons for taking a panoramic dental x-ray. Impacted third molars (wisdom teeth) are clearly visible, helping dentists plan extraction or monitoring.
Orthodontic and Implant Planning
For orthodontic treatments or dental implants, panoramic radiographs help assess bone structure, tooth alignment, and root position, critical for precise planning.
Detection of Pathologies
A panoramic radiograph can reveal cysts, tumors, bone irregularities, infections, or sinus conditions that may require further attention.
Jaw Joint (TMJ) Assessment
The panoramic image shows the temporomandibular joints, helping in diagnosing TMJ disorders such as misalignment, arthritis, or jawbone erosion.
Advantages and Safety of Panoramic Dental X-Rays
Complete Coverage
Unlike intraoral X-rays that capture small sections, a panoramic X-ray shows the entire mouth, which is essential for accurate diagnosis and treatment planning.
Minimal Radiation Exposure
The dose from a panoramic image is low. Measured effective doses were 17 microsieverts for a conventional unit and 23 microsieverts for a digital unit, and 8 microsieverts at the lowest digital settings (PubMed 18448296). The exposure settings chosen matter more than the label digital or conventional, which is why the image is taken on indication and with the lowest settings that still answer the clinical question.
Quick and Non-Invasive
The exposure itself lasts about 10 to 20 seconds, causes no discomfort, and the image is available immediately.
Early Detection of Problems
Hidden infections, cysts, or bone loss can be identified before they cause pain or visible damage.
Essential for Complex Treatments
Whether planning an implant, evaluating jaw fractures, or preparing for orthodontic alignment, panoramic imaging provides a solid diagnostic foundation.
Are Panoramic X-Rays Safe
Yes, panoramic x-rays are safe when performed by trained professionals using modern equipment, and the measured doses above are low.
Safety measures include
The measures that keep the dose low are practical ones.
- Use of digital sensors with the lowest exposure settings that still give a usable image.
- Correct positioning, so the image does not have to be retaken.
- Strict adherence to ALARA ("As Low As Reasonably Achievable") safety principles.
Lead aprons and thyroid collars are not on this list. The American Academy of Oral and Maxillofacial Radiology recommends discontinuing gonadal and fetal shielding, because the dose these areas receive from dental imaging is negligible, and recommends that thyroid shielding not be used for intraoral, panoramic, cephalometric or cone-beam CT imaging (PubMed 37530694). The American Dental Association notes that such shields can block the primary beam and lead to retakes (ada.org).
However, pregnant women should inform their dentist before any X-ray, as extra precautions or postponement might be necessary.
Panoramic Dental X-Ray Procedure and Limitations
The panoramic X-ray procedure is part of modern dental imaging and has practical limitations.
- No special preparation is required; simply remove metallic accessories.
- The dentist or technician positions your head using chin and temple supports.
- You bite on a sterile guide to align teeth properly.
- The machine rotates around your head for about 10 to 20 seconds; you feel nothing and it stays quiet.
- The image appears instantly on the screen for analysis.
Afterward, your dentist will review the image to check for:
- Larger areas of decay
- Bone loss
- Jaw misalignment
- Sinus issues
- Cysts or other pathologies
Limitations of Panoramic X-Rays
While a panoramic X-ray offers a wide overall view, it may not show fine details like small cavities or micro-cracks.
For those, intraoral bitewing or periapical X-rays may be needed.
Thus, panoramic imaging is often used as a first step in a comprehensive dental evaluation.
A regular dental X-ray, meaning a bitewing or periapical film, is taken with a sensor inside the mouth and shows a few teeth in high detail. A panoramic X-ray is taken with an arm rotating around the head and shows the whole mouth and both jaws in one image with less fine detail. The two answer different questions and are often used together.
There is no fixed calendar for repeating a panoramic image. A patient planning implants, monitoring impacted wisdom teeth or starting orthodontic treatment needs one sooner, while a low-risk patient with no symptoms can go longer between images. For children, digital panoramic systems adjust the exposure for smaller patients.
The Role of Panoramic X-Rays in Modern Dentistry
The use of digital panoramic X-rays has become a cornerstone in preventive and restorative dentistry.
From spotting hidden problems to planning complex prosthetic or implant procedures, it supports both accuracy and patient safety.
Moreover, the ability to instantly view and share digital images helps dental teams collaborate efficiently and maintain accurate patient records.
The panoramic dental x-ray is a diagnostic tool that provides a complete view of your oral and maxillofacial structures. It is quick, low-dose and informative, allowing dentists to detect potential issues early and plan treatments accurately. Whether you're considering orthodontic care, dental implants, or a routine exam, a panoramic x-ray gives the dentist the overview, and intraoral films add the tooth-by-tooth detail it cannot show.
